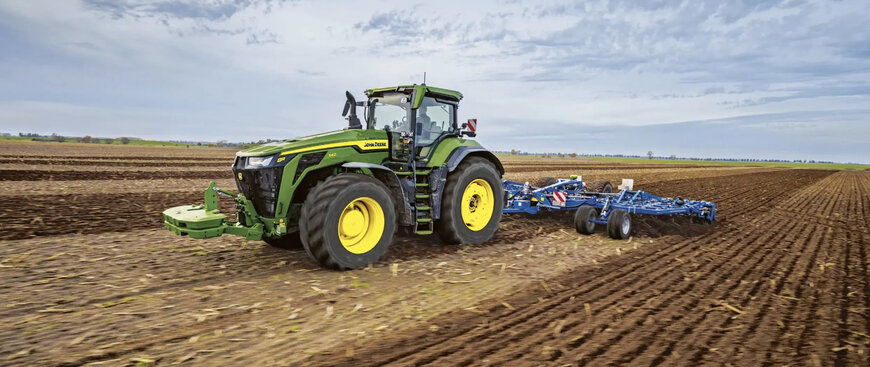

High-Horsepower Tractors for Large-Scale Farming
John Deere expands 8R and 8RX series with higher output models for heavy draft, precision agriculture and extended field operations.
www.deere.com
John Deere has introduced three new high-horsepower models in its 8R and 8RX tractor range, rated at 440 hp, 490 hp and 540 hp. Designed for large European farm operations, the tractors target heavy draft tillage, high-capacity seeding and transport tasks requiring sustained power and integrated precision agriculture systems.
All models are powered by the 13.6-litre JD14 engine and equipped with an electro-mechanical stepless transmission. With Intelligent Power Management, the top specification reaches up to 634 hp (ECE-R120), positioning the 8R/8RX 540 in the upper output range of standard-frame tractors.
Engine Performance and Power Management
The JD14 engine delivers up to 2,695 Nm of peak torque at 1,400 rpm and maintains a constant power band between 1,450 and 1,900 rpm. This wide plateau supports consistent tractive performance during deep tillage and high-load PTO applications.
Peak Power Intelligent Power Management provides up to 40 additional horsepower down to 1,600 rpm under high-demand conditions such as PTO-driven implements or hydraulic loads. Maximum engine output with IPM reaches:
- 524 hp (385 kW) for the 8R/RX 440
- 579 hp (426 kW) for the 8R/RX 490
- 634 hp (466 kW) for the 8R/RX 540
This power level supports implements requiring up to 548 hp at the rear PTO, including large mulchers and silage distribution systems.
Traction, Ground Protection and Undercarriage Design
For soil cultivation and heavy draft applications, traction and soil compaction are key operational constraints. The wheeled 8R variants can be fitted with rear tyres up to 2.30 m in diameter and dual front tyres up to 710 mm wide. A single-line Central Tyre Inflation System adjusts pressures automatically across speeds and temperature ranges, allowing adaptation between field and transport conditions.
The 8RX models use a four-track configuration with redesigned undercarriages and low-tension belts. Depending on configuration, the system provides up to 4.87 m² of contact area and ground pressures as low as 0.4 kg/cm². This specification is relevant for operations on sensitive soils, where reduced compaction contributes to improved root development and yield stability.
Electro-Mechanical Transmission Architecture
All new models integrate a stepless electro-mechanical transmission that replaces hydrostatic elements with electric motor-generators in a split-path layout. According to internal comparison with previous hydrostatic designs, this architecture improves energy flow efficiency by up to 8%.
For high-load fieldwork, reduced internal losses translate into lower fuel consumption per hectare and more stable torque transfer under dynamic loads.
Three selectable operating modes allow adaptation to task requirements:
Traction, Ground Protection and Undercarriage Design
For soil cultivation and heavy draft applications, traction and soil compaction are key operational constraints. The wheeled 8R variants can be fitted with rear tyres up to 2.30 m in diameter and dual front tyres up to 710 mm wide. A single-line Central Tyre Inflation System adjusts pressures automatically across speeds and temperature ranges, allowing adaptation between field and transport conditions.
The 8RX models use a four-track configuration with redesigned undercarriages and low-tension belts. Depending on configuration, the system provides up to 4.87 m² of contact area and ground pressures as low as 0.4 kg/cm². This specification is relevant for operations on sensitive soils, where reduced compaction contributes to improved root development and yield stability.
Electro-Mechanical Transmission Architecture
All new models integrate a stepless electro-mechanical transmission that replaces hydrostatic elements with electric motor-generators in a split-path layout. According to internal comparison with previous hydrostatic designs, this architecture improves energy flow efficiency by up to 8%.
For high-load fieldwork, reduced internal losses translate into lower fuel consumption per hectare and more stable torque transfer under dynamic loads.
Three selectable operating modes allow adaptation to task requirements:
- ECO mode lowers engine speed for transport and light-duty work.
- STANDARD mode balances response and efficiency for general field operations.
- MAX mode prioritises full engine output for heavy draft conditions.
Hydraulics, Hitch and Implement Capacity
Hydraulic flow reaches up to 418 l/min, supporting large pneumatic seed drills and high-demand implements. The rear hitch offers up to 10.8 t lift capacity at 610 mm, while front hitch options provide up to 4.8 t at the same measurement point. A 130 kW front PTO expands implement combinations for front-rear operations.
The tractors can be equipped with a Category 5 drawbar and a Type 4 rear PTO offering 1000, 1000E and 1300 rpm speeds. These specifications position the machines in the 600 hp segment typically associated with articulated tractors, while retaining standard-frame manoeuvrability.
Transport Performance and Braking Systems
Wheeled versions can reach 60 km/h at 1,440 rpm or 50 km/h at 1,200 rpm, subject to regional regulations.
An optional engine brake provides up to 300 kW of braking power, automatically responding to deviations from preset speed. Front axle suspension integrates roll control that adjusts stiffness during cornering and braking to reduce pitching and lateral movement.
Reactive steering and variable steering ratios reduce steering wheel input at higher speeds, supporting stable road handling during frequent field-to-field transport.
Cab Architecture and Operator Interface
The CommandView 4 cab includes digital machine controls, configurable joysticks and integrated display systems. On 8RX high-horsepower variants, the extended cab provides 15% more legroom and a 20% wider forward field of view compared with the standard 8R cab.
Electronic seat adjustment and climate-controlled seat ventilation address operator endurance during shifts of up to 14 hours, supported by fuel capacities of 936 litres (8R) and up to 1,123 litres (8RX). At 85% load, operating time can reach approximately 14 hours without refuelling.
Precision Agriculture and Connected Operations
Each model is equipped with a StarFire 7500 receiver, G5Plus display and JDLink connectivity. These systems form part of an integrated digital supply chain within large farming operations, enabling data exchange between machines and the Operations Center platform.
Guidance and automation functions include row-based path planning, automated headland turning, centimetre-level implement guidance and reverse implement steering support. Passive implement guidance reduces drift, particularly with wide seeders or cultivators.
Digital non-position-indicating controls prepare the tractors for potential future autonomy components, reflecting a broader automation strategy aimed at maintaining productivity with limited labour availability.
Positioning in the High-Power Segment
With maximum permissible weights up to 24,000 kg and a wheelbase of 3,350 mm, the tractors combine articulated-level pulling capacity with standard-frame agility and a turning radius of approximately 7 m.
This configuration targets large-scale arable farms seeking to manage expanding hectare volumes with fewer machines, integrating high power density, automation and connected fleet management into a unified operational model.
www.deere.co.uk
Hydraulic flow reaches up to 418 l/min, supporting large pneumatic seed drills and high-demand implements. The rear hitch offers up to 10.8 t lift capacity at 610 mm, while front hitch options provide up to 4.8 t at the same measurement point. A 130 kW front PTO expands implement combinations for front-rear operations.
The tractors can be equipped with a Category 5 drawbar and a Type 4 rear PTO offering 1000, 1000E and 1300 rpm speeds. These specifications position the machines in the 600 hp segment typically associated with articulated tractors, while retaining standard-frame manoeuvrability.
Transport Performance and Braking Systems
Wheeled versions can reach 60 km/h at 1,440 rpm or 50 km/h at 1,200 rpm, subject to regional regulations.
An optional engine brake provides up to 300 kW of braking power, automatically responding to deviations from preset speed. Front axle suspension integrates roll control that adjusts stiffness during cornering and braking to reduce pitching and lateral movement.
Reactive steering and variable steering ratios reduce steering wheel input at higher speeds, supporting stable road handling during frequent field-to-field transport.
Cab Architecture and Operator Interface
The CommandView 4 cab includes digital machine controls, configurable joysticks and integrated display systems. On 8RX high-horsepower variants, the extended cab provides 15% more legroom and a 20% wider forward field of view compared with the standard 8R cab.
Electronic seat adjustment and climate-controlled seat ventilation address operator endurance during shifts of up to 14 hours, supported by fuel capacities of 936 litres (8R) and up to 1,123 litres (8RX). At 85% load, operating time can reach approximately 14 hours without refuelling.
Precision Agriculture and Connected Operations
Each model is equipped with a StarFire 7500 receiver, G5Plus display and JDLink connectivity. These systems form part of an integrated digital supply chain within large farming operations, enabling data exchange between machines and the Operations Center platform.
Guidance and automation functions include row-based path planning, automated headland turning, centimetre-level implement guidance and reverse implement steering support. Passive implement guidance reduces drift, particularly with wide seeders or cultivators.
Digital non-position-indicating controls prepare the tractors for potential future autonomy components, reflecting a broader automation strategy aimed at maintaining productivity with limited labour availability.
Positioning in the High-Power Segment
With maximum permissible weights up to 24,000 kg and a wheelbase of 3,350 mm, the tractors combine articulated-level pulling capacity with standard-frame agility and a turning radius of approximately 7 m.
This configuration targets large-scale arable farms seeking to manage expanding hectare volumes with fewer machines, integrating high power density, automation and connected fleet management into a unified operational model.
