Fendt 1000 Vario: More output, More user-friendly

Series production of the first generation of the Fendt 1000 Vario began in 2015. Ten years later, Fendt is already presenting the fourth generation of the large tractor. Compact, well-visible dimensions with strong performance continue to be its key features. A new feature is a completely newly developed innovative lighting concept, the extended power range of 426 – 550 hp, which can be regulated downwards with lower power requirements, and a dual wheel hub option for dual tyres.

The fourth generation of the series sits in the power range from 426 to 550 hp (313 – 405 kW) with four models (Fendt 1040, 1044, 1048 and Fendt 1052 Vario). The Fendt DynamicPerformance (DP) added-power concept is available for all models and, depending on the model, additionally adds 26, 27 or 30 hp (19, 20 or 22 kW), when its required. Fendt DP is bound to neither driving speed nor special application tasks and works purely dynamically – even during stationary PTO work or, depending on the operating conditions in soil cultivation. If the power requirement rises for consumers such as hydraulics, PTO, compressed air supply or air-conditioning, Fendt DP gives it more power and ensures consistent work performance.

Developed as a flexible and compact tractor in the performance class up to 550 hp, the focus of the development was on a low empty weight with compact dimensions for the performance class, which allow the most unobstructed view of work results. In addition, numerous equipment options are designed for the global requirements for a standard tractor for heavy towing or soil work, transport with up to 60 km/h (for flange and 2.50 m stub axle) or for use in construction and forestry sectors with implements with a high power requirement such as soil stabilisation milling or wood chippers.

The well-known MAN engine has already been approved for HVO100 and other fuels according to DIN 15940 in the current expansion stage. Operating with HVO can significantly reduce the machine's CO2 footprint. Technical optimisations increase the replacement interval of the transmission oil from 2,000 to 4,000 operating hours or 4 years. This further reduces maintenance costs.




Clean air in dusty conditions

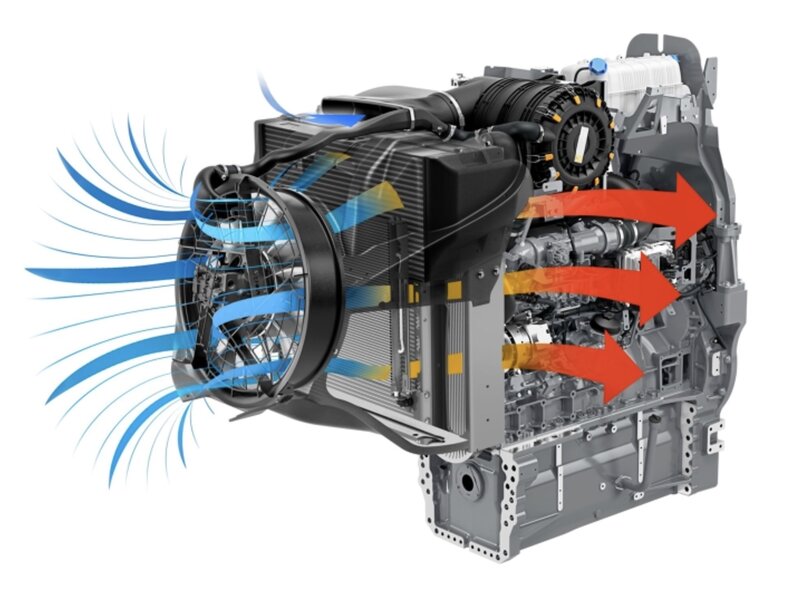

The graphic shows the air flow of warm air from the engine and cool outside air in the Concentric Air System (CAS) cooling concept using arrows.

As standard, the Fendt 1000 Vario is equipped with the exclusive Concentric Air System (CAS) ventilation & cooling concept. An optional reversible function is available for the fan. Already with the third generation of the Fendt 1000 Vario, the DLG-award-winning, self-cleaning air filter for the MAN engine was optionally available. This option allows automatic, regular blowing out of the air filter during the working day, reducing maintenance and protecting the components. If the engine air filter is cleaned automatically, drivers can do their field work without interruption, regular cleaning increases the service life of the machine and ensures optimum engine performance and reduced fuel consumption.




Adjustable power levels
An absolute novelty of the Fendt 1000 Vario Gen4 are just these adjustable power levels. The particularly powerful models are often also used when working with a lower power requirement in order to optimally utilise the machines. For the first time, the driver can select the various power levels according to the range of the application and implement. If the top model Fendt 1052 Vario is used, for example, in front of a square baler or an 8 m disc harrow, the power can be reduced. For each model, only the downward adjustment of the power level is possible. This means that customers of an Fendt 1044 Vario cannot call up the performance of the larger Fendt 1048 and 1052 Vario models, but only those of the smaller model Fendt 1040 Vario. This option significantly reduces fuel consumption, protects implements that are not designed for 550 hp engine power and the tractor can be used more versatilely.

Numerous axle and tyre options
For the Fendt 1000 Vario, there are numerous options for the rear axle and the tyres with a maximum diameter of 2.35 m at the rear to choose from. Depending on the local requirements, customers can order the tractor as standard with a flange or stub axle. For Europe, a stub axle with an outside width of 2.50 m is available. For countries outside the EU, a stub axle with an outside width of 3.0 m is available.

With the fourth generation, the customer has more tyre options available. Depending on the range of applications, single tyres, metric dual tyres or Row Crop dual tyres are available. New for Europe, the Row Crop dual tyres on the rear axle of the tractor are available from the factory. Four times 480/95R54 tyres are mounted. In combination with a newly designed rear including lower link with quick-hold hook, Rub Blocks and the stub axle with an outside width of 2.5 m, the outer tyres are mounted with the dual wheel hub.

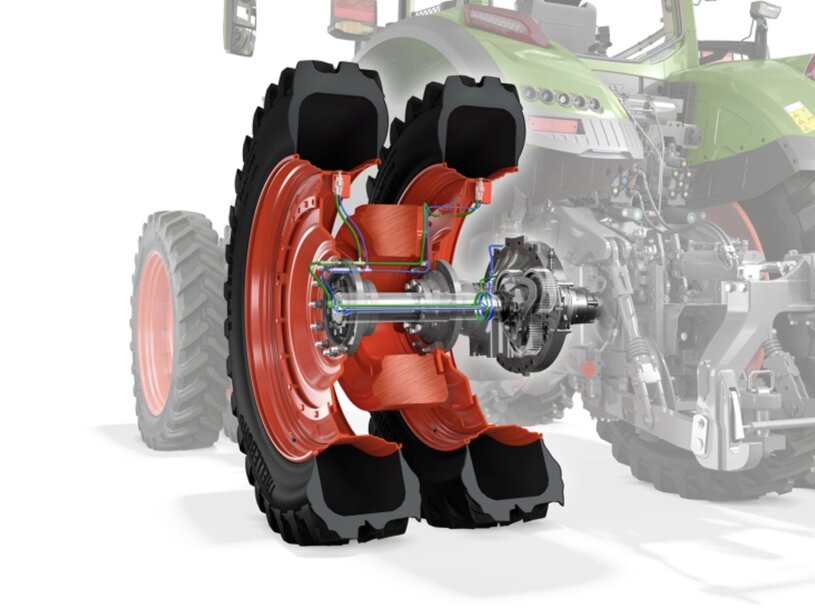

The dual wheel hub is a coupling system for twin wheels that allows the transmission of higher forces. It transmits the power safely across the axles, unlike the rims, as with conventional solutions. The proven single tyres (710/60R38) are installed on the front axle. Here, the track for increased manoeuvrability was adjusted to 2,250 mm. This complete solution is available from the factory and increases the towing performance and reduces the slip. The machine remains below an outside width of 3.50 m, which enables approval with an exemption. In the rear, both drawbar and the K80 hitches are available, and a classic towing drawbar can also be used to cover traditional bottom hitches.




High performance in non-agricultural use
Large snow blowers, wood chippers, forest mulchers, soil stabilisation and stone milling machines have a high power requirement and are often used in rough terrain. This work also requires high precision and manoeuvrability, for example, on tight construction sites. Fendt VarioDrive, the optional reverse drive control, numerous tyre options, the individual illumination options, the adjustable performance and the flexible use in front of milling machines, containers, or other implements of the Fendt 1000 Vario can be used productively here.
