Agricultural Tractor Drivetrain and Precision Control Systems

Agricultural contractors and livestock operations face increasing operational demands, requiring machinery capable of handling heavy transport duties and tight-quarter field applications without excessive downtime or mechanical stress. Delivering continuous power output while maintaining precise speed control and maneuverability remains an ongoing mechanical challenge in modern agricultural engineering. The redesigned Case IH Puma 185 tractor addresses these operational constraints by pairing continuously variable transmission architecture with integrated precision farming technology to streamline implement management and field tasks.

Drivetrain Architecture and Steering Dynamics
At the core of the Case IH Puma series — which spans power ratings of 155, 165, and 185 hp — the Puma 185 employs the CVXDrive continuously variable transmission. This transmission architecture enables stepless speed adjustment across the operating spectrum, allowing operators to match ground speed directly to implement load requirements without interrupting torque delivery. By decoupling engine speed from wheel speed, the system optimizes mechanical efficiency during demanding field applications such as slurry injection, baling, and soil preparation.

Maneuverability in constrained yard environments and headlands is governed by a redesigned front axle assembly that achieves a turning radius of 11.4 m. Combined with a dedicated front axle suspension system and mechanical cab suspension, the chassis geometry attenuates low-frequency vibrations generated across uneven terrain. These structural modifications stabilize both the machine and mounted implements during high-speed road haulage and field transit.

Operator Ergonomics and Precision Implement Management

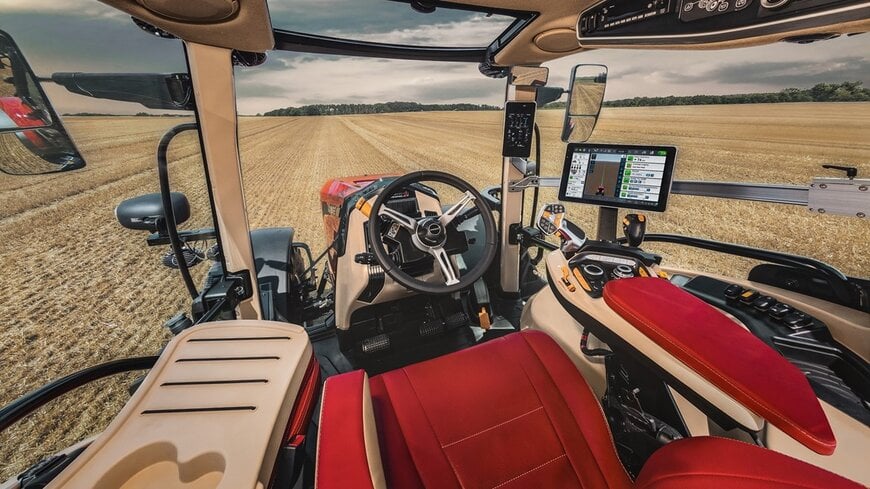

Extended operational cycles during peak harvest and planting seasons demand low physical fatigue and precise implement control. The updated cab structure incorporates a re-engineered layout with revised console controls that unify hydraulic flow configuration, linkage management, and steering inputs into a centralized interface.

The tractor integrates digital precision farming packages designed to standardize guidance, data telemetry, and implement control protocols. Operators can monitor working parameters in real time and adjust application rates directly from the cab interface, mitigating overlap and reducing input waste across varied field geometries. To lower scheduled maintenance overhead in high-hour operations, the powertrain features extended service intervals, requiring engine oil and filter replacements every 750 operating hours.

Regional Equipment Demonstration
Case IH will exhibit the Puma 185 at the Farm Tractor and Machinery Trade Association (FTMTA) Farm Machinery Show at the Punchestown Event Centre in County Kildare, scheduled for November 17–19, 2026. The manufacturer will utilize an expanded exhibition space to showcase six agricultural machines tailored for livestock producers, mixed farming enterprises, and commercial contractors. The machinery lineup includes tractors from the Farmall A and Farmall M utility series, a Maxxum 150 tractor, a higher-horsepower Puma 260 tractor, and a Farmlift 742 telehandler.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original product announcement.

The 150–200 hp machinery class serves as the core utility segment for Western European agriculture, balancing power-to-weight ratios for PTO-driven implements with chassis dimensions suitable for narrow rural road infrastructure. In this power band, continuously variable transmissions compete directly against stepped semi-powershift and full-powershift gearboxes. While powershift transmissions offer high mechanical efficiency under steady, high-draft field loads, continuously variable units such as CVXDrive provide superior operational control for PTO-intensive tasks where travel speed must modulate independently of engine RPM.

Standardization in this tractor segment heavily relies on ISOBUS (ISO 11783) compliance for universal implement integration, allowing third-party sprayers, seeders, and balers to interface natively with the primary in-cab terminal without requiring secondary display units. The 750-hour oil service interval aligns with modern heavy-duty agricultural engine standards, which increasingly utilize high-capacity oil pans and advanced crankcase filtration to reduce fluid consumption and maintenance cycles relative to older 500-hour industry baselines.
